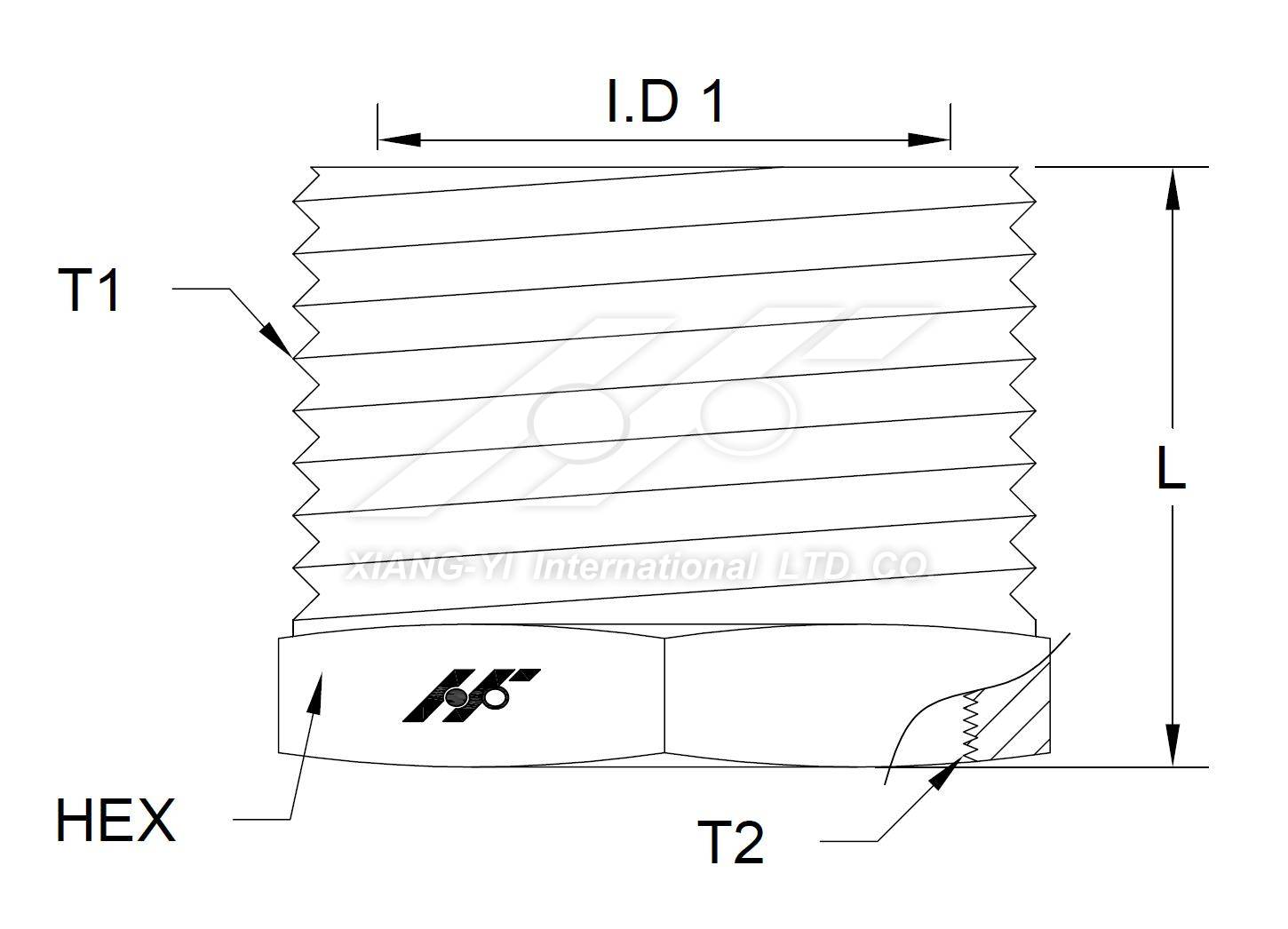

▲ Product Name: Bushing
▲ Design Standard: ISO9001
▲ Working Pressure:10KG
▲ Size:1/4inch-5inch
▲ Material: YBsC3(BRASS)/C83600(BRONZE)
▲ Body made of sand casting
▲ Suitable Temperature:＜150℃(PPL＜300℃)
▲ Suitable Medium:Water,Gas,Oil
▲ Threaded Ends:BSPT.NPT.DIN2999.ISO 228/1&ISO/1
▲ Inspection & Testing:API598
| 編號 | 尺寸 |
|---|---|
| CD30021 | 1/4"Tx1/8"內 |
| CD30031 | 3/8"Tx1/8"內 |
| CD30032 | 3/8"Tx1/4"內 |
| CD30041 | 1/2"Tx1/8"內 |
| CD30042 | 1/2"Tx1/4"內 |
| CD30043 | 1/2"Tx3/8"內 |
| CD30062 | 3/4"Tx1/4"內 |
| CD30063 | 3/4"Tx3/8"內 |
| CD30064 | 3/4"Tx1/2"內 |
| CD30104 | 1"Tx1/2"內 |
| CD30106 | 1"Tx3/4"內 |
| CD30128 | 1-1/4"Tx1"內 |
| CD30149 | 1-1/2"Tx1-1/4"內 |
| CD30214 | 2"Tx1-1/2"內 |
